Gas Ignition Needle 99% White Alumina Ceramic Products AL2O3 White Ceramic Ignition Head

Brand Name : HY

Model Number : HY-DHT

Certification : CE

Place of Origin : China Yixing

MOQ : 10 pieces

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, D/P

Supply Ability : 100000 pcs per month

Delivery Time : 20-30 working days

Packaging Details : wooden case

AL2O3 : ≥ 99%

color : White

size : customization

density : 3.85g/cm³

hardness HV : 1600

number of use : 10000

Contact Now

white ceramic ignition head gas ignition needle size can be customized engine ignition head

product name:Ceramic ignition needle

dimension:Accept customization

product introduction:

Alumina ceramic igniter is a kind of ceramic product used in electric burner igniter. Electric burners often use igniter to ignite. The igniter generally emits electric sparks through the igniter electrode, and the outer surface of the igniter electrode requires an insulated, high-temperature resistant and explosion-proof protective sleeve. Usually, ceramic igniter is used for protection.

products standard:

Ceramic characteristic table
	name	99% AL2O3	95% AL2O3
physical propertyessential component	essential component	AL2O3≥95%
	density	3.85	3.6
	water absorption%	0	0
	sintering temperature	1690	1670
material characters	hardness	1700	1600
	break off strength	>6500	>2900
	compressive strength	30000	25000
thermal response	maximum service tempera- ture	1500	1400
	thermal expansion coefficient	8	7.8
	10-6/℃
	0-1000℃
	Heat shock resistance T(℃)	200	220
	thermal conductivity W/m.k	31	22
electrical specification	volume resistivity Ω.cm	>10¹²	>10¹²
	Insulation destructive power KT/m	18	16
	dielectric constant 1MHZ(E)	9.2-10.5	9.0-10

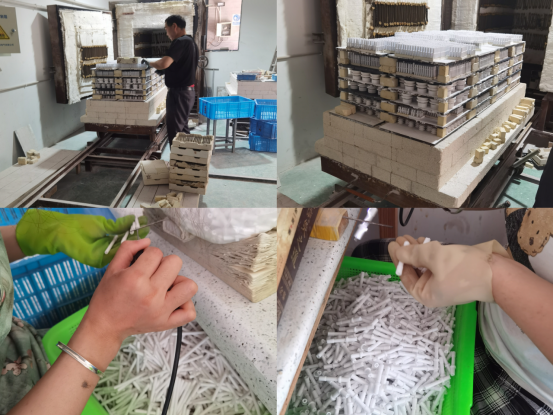

Production pictures:

Gas Ignition Needle 99% White Alumina Ceramic Products AL2O3 White Ceramic Ignition Head
